STS 808-V Bottle Applicator

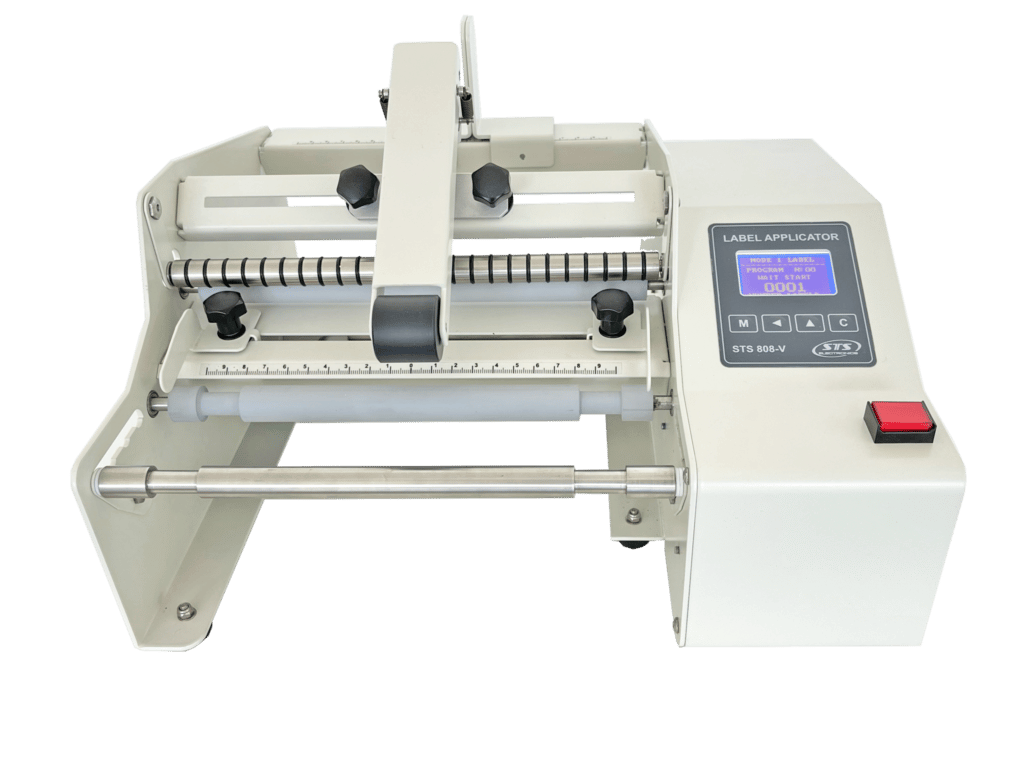

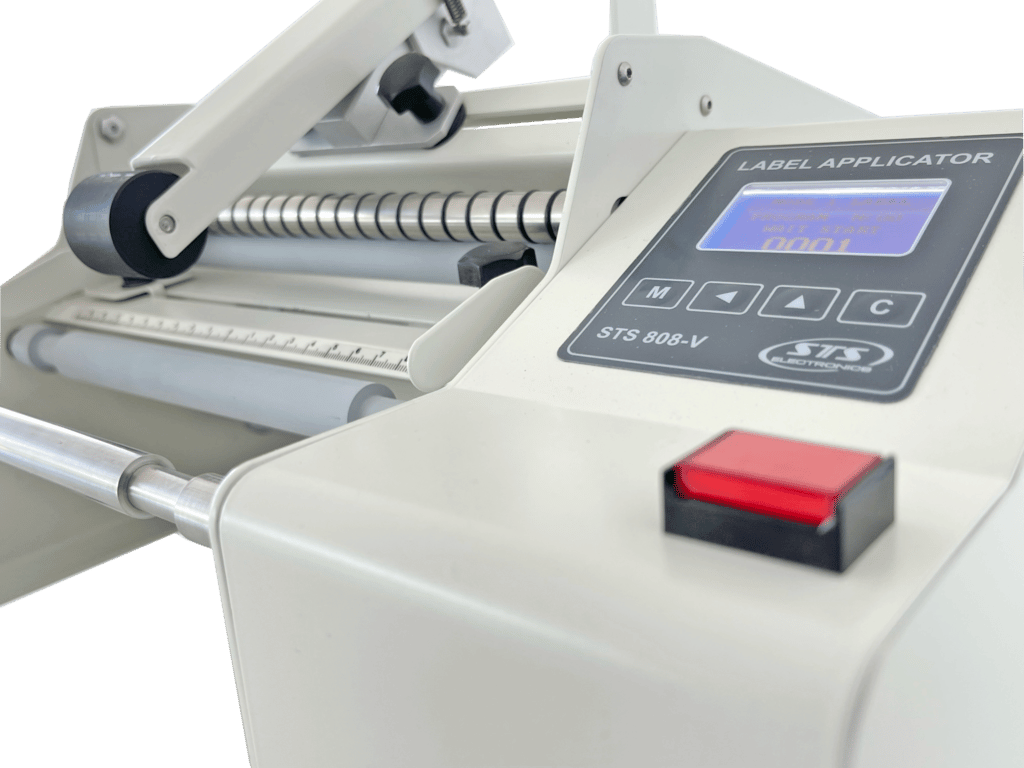

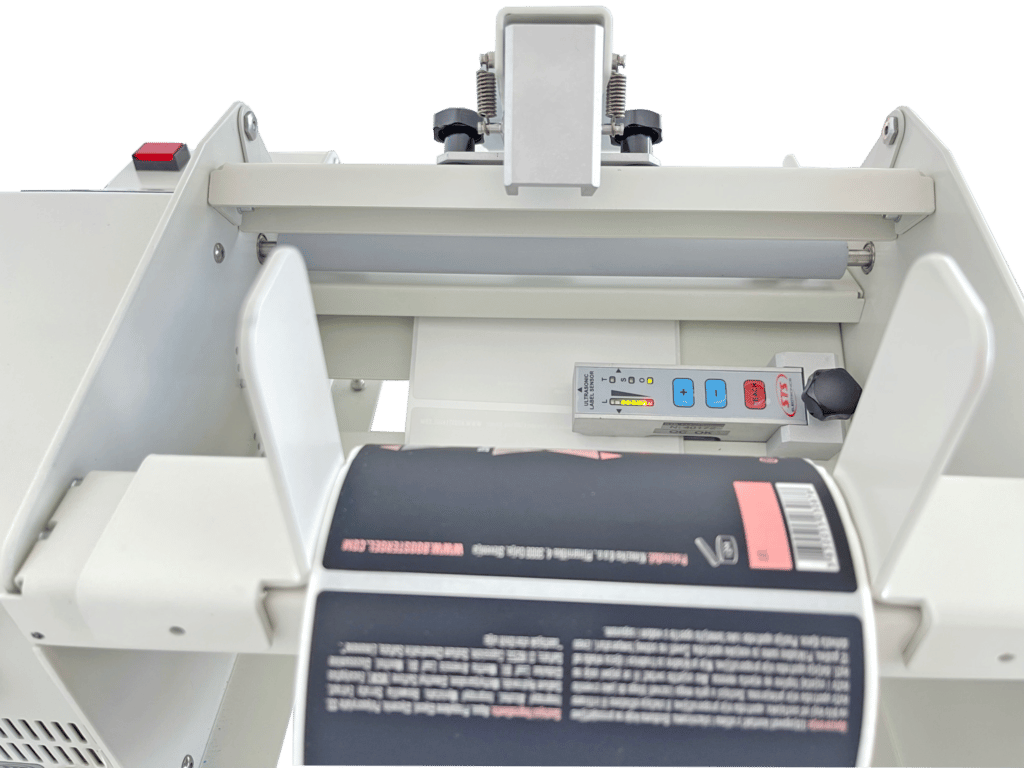

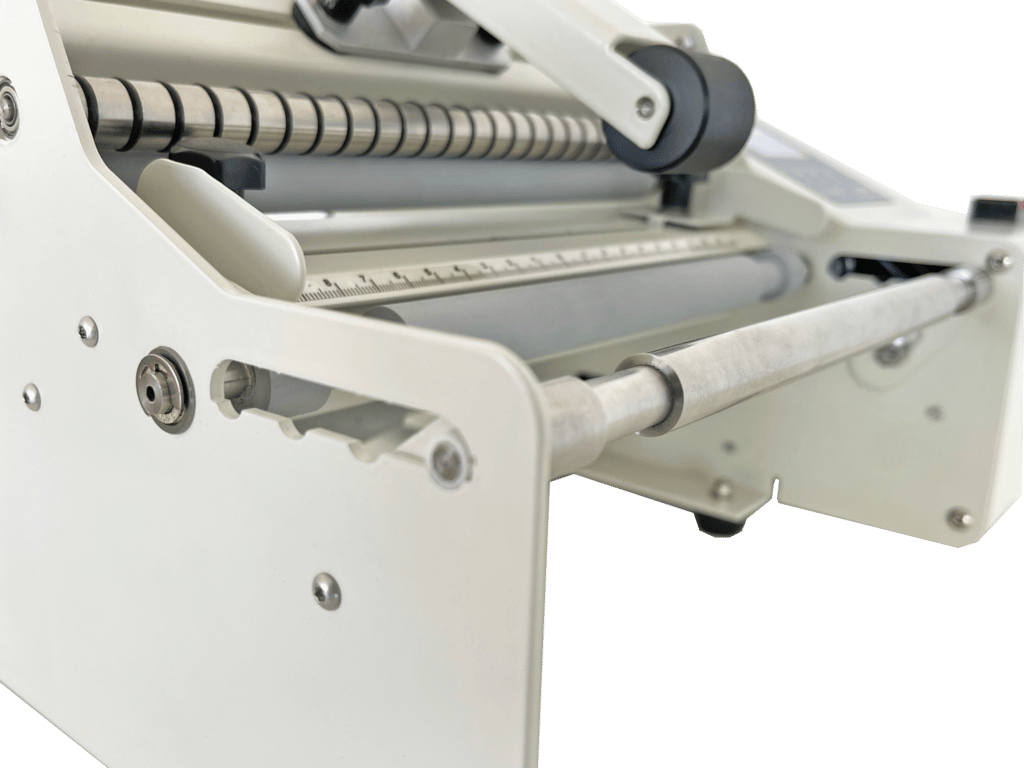

STS808-V Bottle Label Applicator

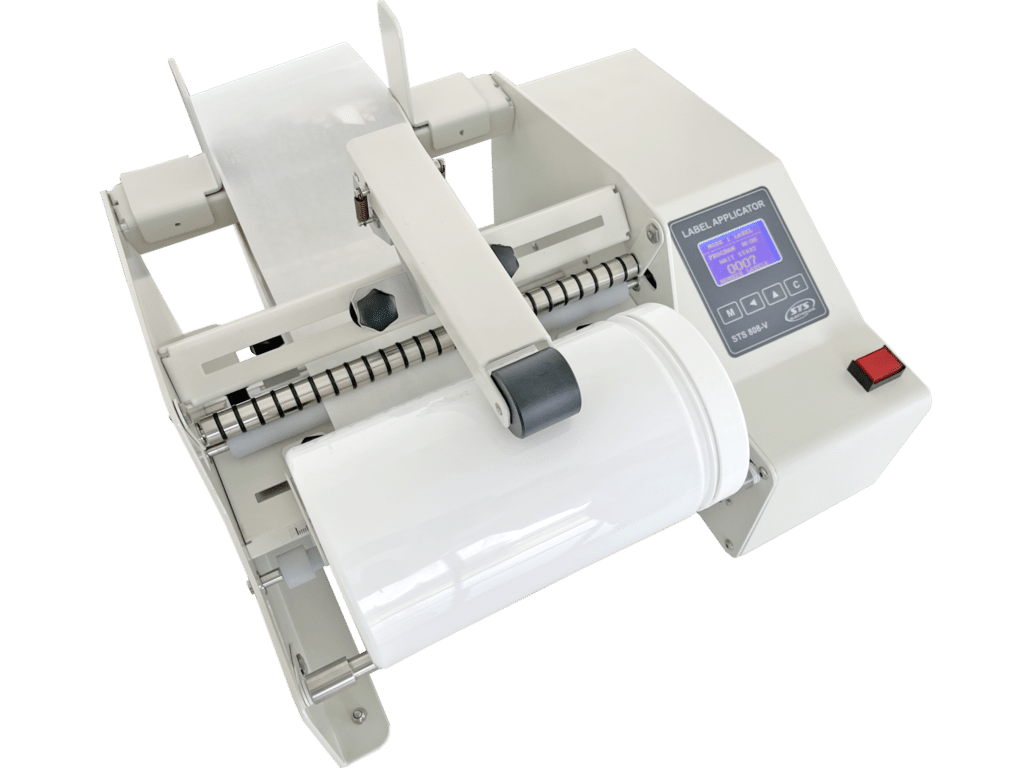

The STS808-V is a semi automated label applicator for bottles, cans, jars, and tubes. It can apply up to 2 labels on a cylindrical object – great for wine bottles with front and back label.

You can also configure the STS808-V easily to handle labeling on a straight or tapered bottle.

The STS808-V allows you to save up to 29 settings in the memory.  So that you can switch quickly from one bottle type to another without re-configuring the applicator

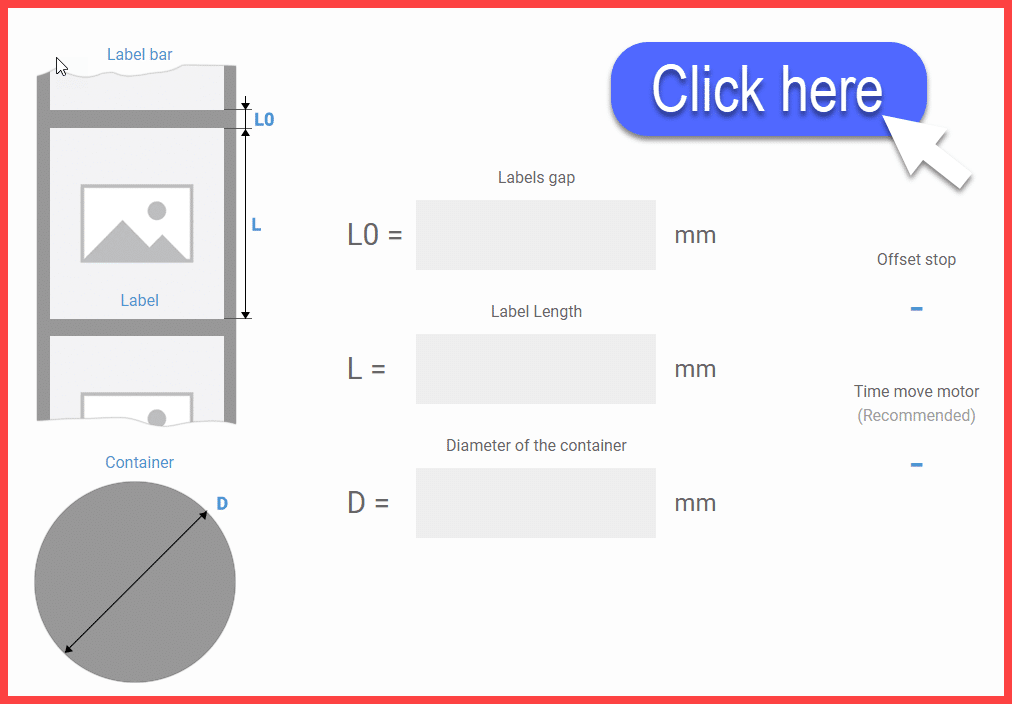

Use the Online calculator to determine the settings to use for accurate, consistent placement of label(s) on the bottle.

Key Features

  • For cylindrical objects – wine bottles, cans, jars, and tubes
  • Fast speed of 0.1m/sec or 4″/sec
  • Up to two labels per bottle
  • Activate either by press button or hands-free with a foot pedal (included)
  • Store and recall up to 29 settings to enable fast switchover

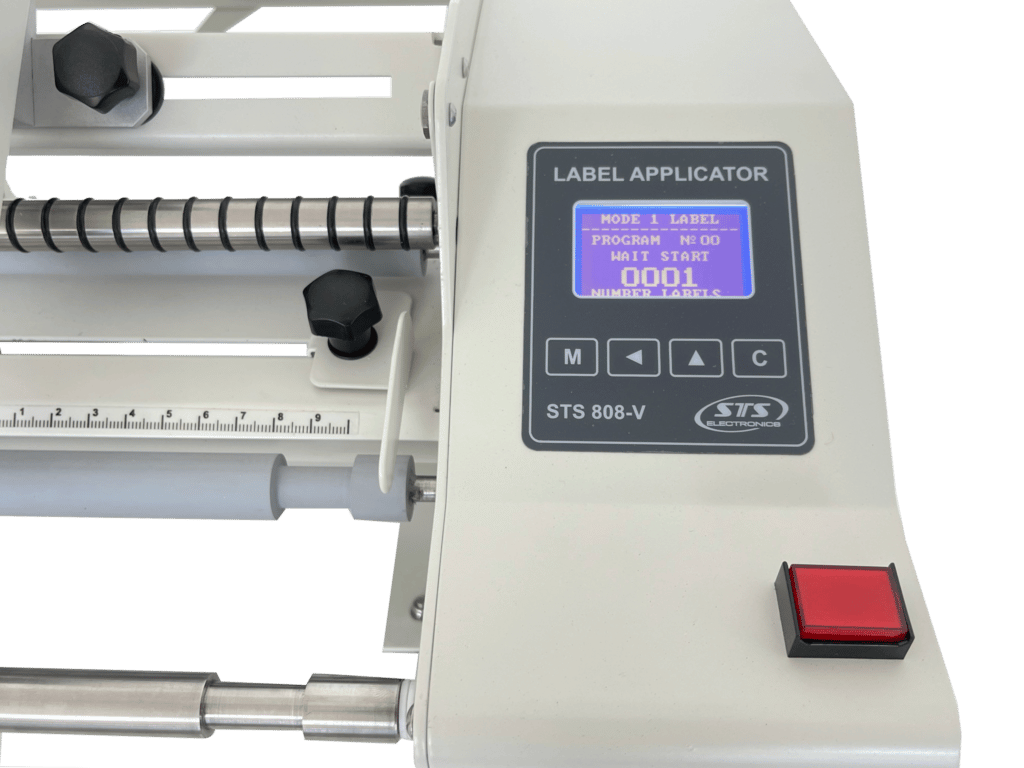

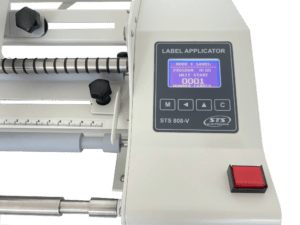

  • LCD screen shows status and counters when in operation
  • Supports straight and tapered bottles
Download Brochure Download User Guide

Object/Container:
» Type: Cylindrical (straight and tapered)
» Diameter: 25 – 160 mm (1 – 6.3″)
» Height: 50 – 240 mm (2 – 9.5″)

Label:
» Roll Size: Up to 200 mm (7.8″)
» Roll Core Diameter: 46 – 76 mm (18.3 – 3″)
» Width: 25 – 150 mm (1 – 6″)
» Length: 25 – 500 mm (1 – 19.7″)
» Gap: 3 – 10 mm (0.1 – 0.4″)

Performance:
» Speed: 0.1 m/sec (4″/sec)
» Dispending Labels: Up to 2 labels

Product Dimensions and Weight:
» Physical Dimensions (W x D x H): 365 x 330 x 245 mm (14.4 x 13 x 9.5)
» Weight: 12 kg (26.5Ibs)

Others:
» User Interface: LCD panel for configuration, status, and counter
» Dispense activation: Press button and foot pedal
» Power supply: 220Vac, 50 Hz
» Warranty: 2-years
