Available in

North America | Europe | Asia

Motorized Core Holder (MCH) series Unwinder/Rewinder for VP600/VP700/VP750

The MCH series of unwinder & rewinder is ruggedly designed to handle labels up to 240 mm (or 9.4″) wide and can unwind/rewind label stock up to 350 mm (13.8″) OD with a 76 mm (3″) OD.

Furthermore, the MCH unwinder & rewinder can be configured to rotate either clockwise or anti-clockwise thereby allowing it to unwind (or rewind) labels face-in or face-out.

Technical Specifications

Part Number
Rewinder:
› VP-700-RW01A
› VP-700-RW-SW (with double sense switch)

Unwinder:
› VP-700-UW01A

Roll Diameter
350 mm (13.8″) OD

Core Holder
Fixed 76 mm (3″) OD

Available in

North America | Europe

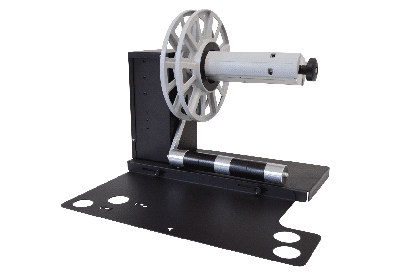

RW02x series Rewinder for VP600/VP700/VP750

This is a compact re-winder for use with the VP600, VP700 and VP750.

It is designed to handle medium size label roll of 250 mm (9.84″) OD and labels as wide as 220 mm (8.66″).

You can choose either a rewinder with either a fixed core or an adjustable one to suit your application.

Technical Specifications

Part Number
Fixed core version:
› VP-700-RW02A

Adjustable core version:
› VP-700-RW02ADJ

Roll Diameter
250 mm (9.84″) OD

Core Diameter
Fixed core: 76 mm (3″) OD
Adjustable core: 40-118 mm (1.5-4.6″) OD

Available in

Europe

RW03XL Rewinder for VP600/VP700/VP750

The RW03XL is a heavy duty re-winder with a clutch system that allows the label roll to be re-winded at your desired tightness.

Ruggedly engineered, the RW03XL can handle large roll up to 300 mm (11.8″) OD and label as wide as 240 mm.(9.4″).

Technical Specifications

Part Number
VP-700-RW03XL

Roll Diameter
300 mm (11.8″) OD

Core Holder
Fixed 76 mm (3″) OD
