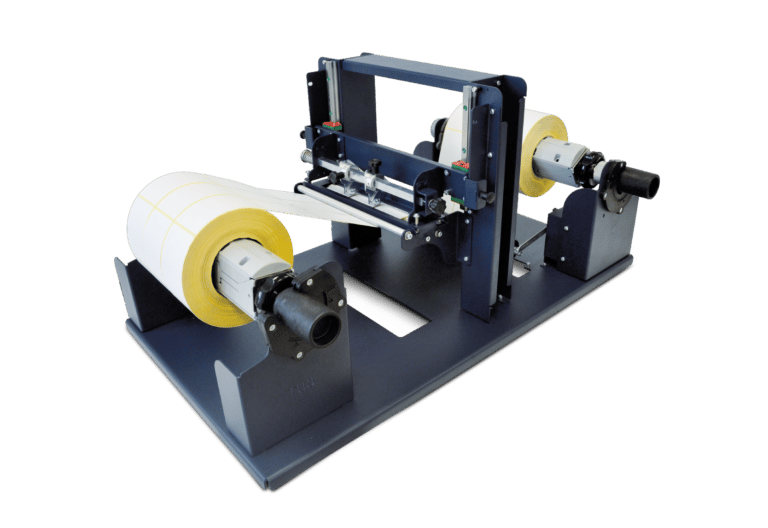

Label Slitter

This machine can unwind, slit and rewind into 3″ motorized core holder re-winder.

Technical Specifications

Roll Diameter
9.84″ or 250 mm

Core Holder
3″ or 76 mm fixed

Label Width
Max. 9.84″ or 250 mm

Slit Width
Min. 0.86″ or 21.8 mm

Speed
Manual adjustment

Power
External 100/240 Vac, 5 A DC at 24 V power supply

Others
4 blades included
Dimensions: : 28.34″ (L) x 14.56″ (H) x 16.73″ (W) or 720 mm (L) x 370 mm (H) x 425 mm (W)
Label rewinding face-out only

Available in

North America | Europe | Asia

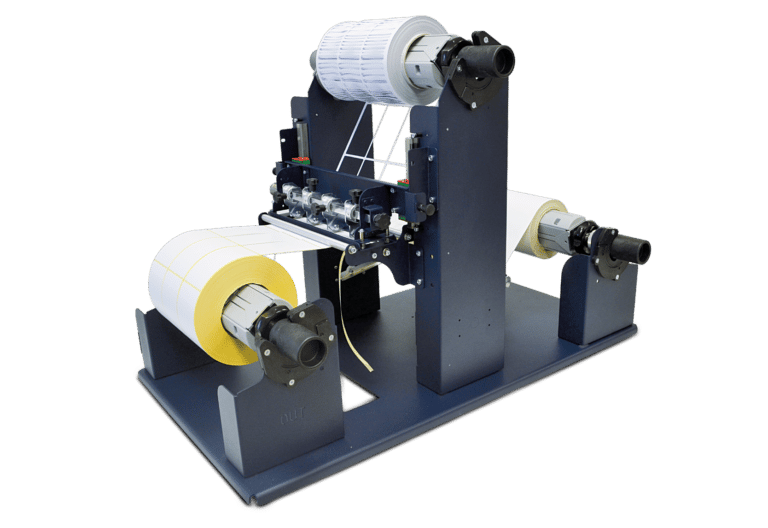

Matrix Remover and Label Slitter

This machine can unwind, remove the label matrix from a die cut label roll and rewind into a 3″ motorized core holder rewinder. Alternatively, it can be used just as a slitting system.

Technical Specifications

Roll Diameter
9.84″ or 250 mm

Core Holder
3″ or 76 mm fixed

Label Width
Max. 8.66″ or 220 mm

Slit Width
Min. 0.98″ or 24.8 mm

Speed
Manual adjustment

Power
External 100/240 Vac, 5 A DC at 24 V power supply

Others
4 blades included
Label rewinding face-out only
Dimensions: : 32.28″ (L) x 23.62″ (H) x 18.50″ (W) or 820 mm (L) x 600 mm (H) x 470 mm (W)
